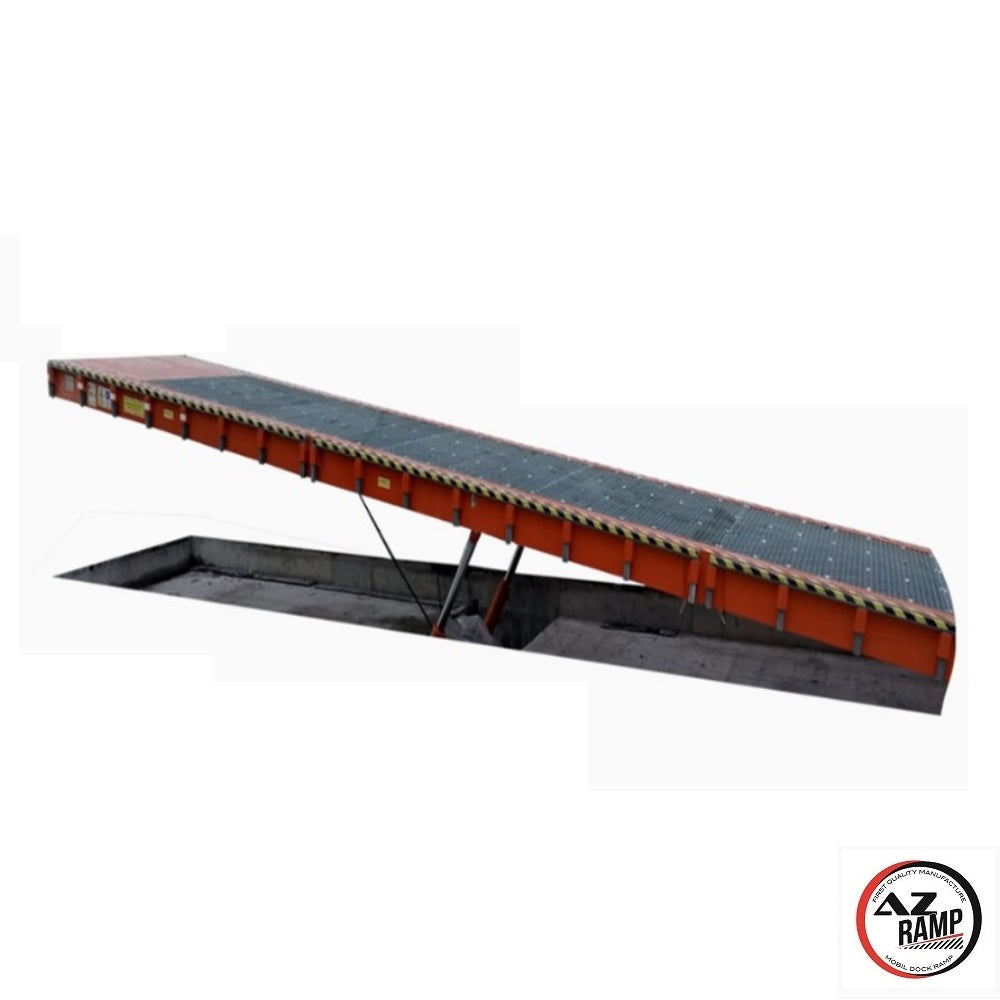

Brand: AZ RAMP - Type: EASY-ST 15T. Load capacity: 15,000 Kg.

Dimensions:
Total deployed length (inclined plane): 12 m.
Total width: 2.00 m - Useful width (interior): 1.93 m.
Adjustable lifting height: Minimum: 1.00 m - Maximum: 1.50 m.
Slope: Minimum: 8.33% - Maximum: 12.5%.

Product advantages:
Designed for use with 3 and 4 wheel forklifts.
Electrohydraulic lifting, telescopic lip.
Side safety rails 24 cm high, retractable.
Non-slip tread surface in hot-dip galvanized grid.
IP65 control panels.

Applications:

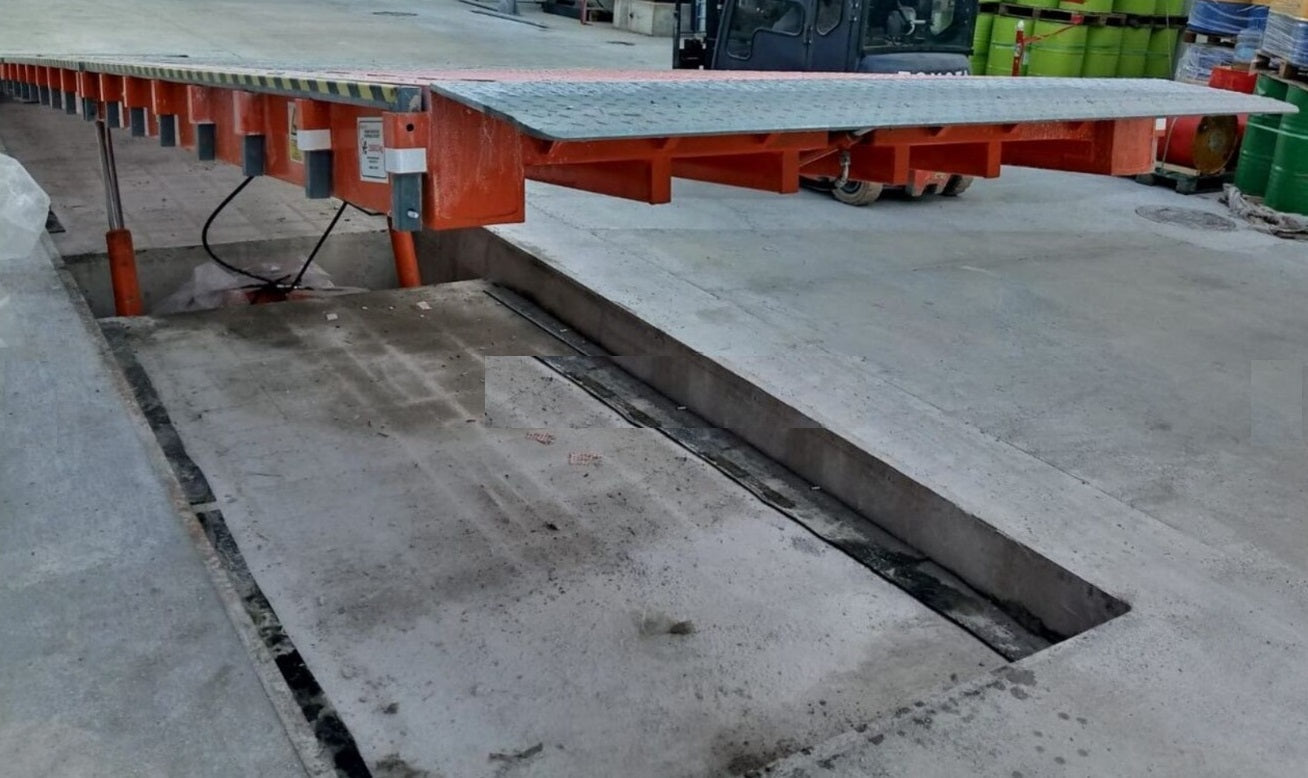

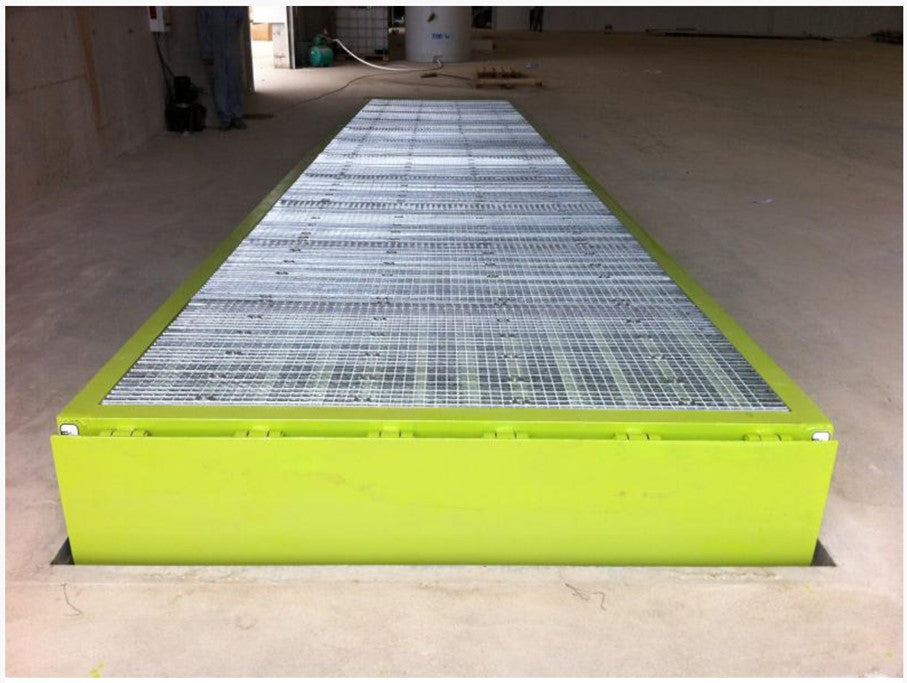

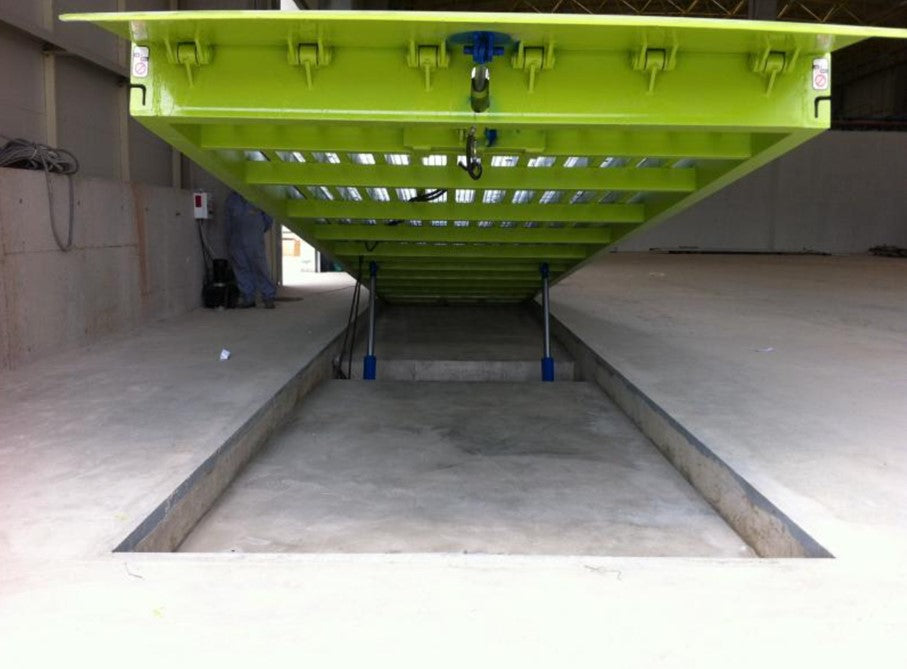

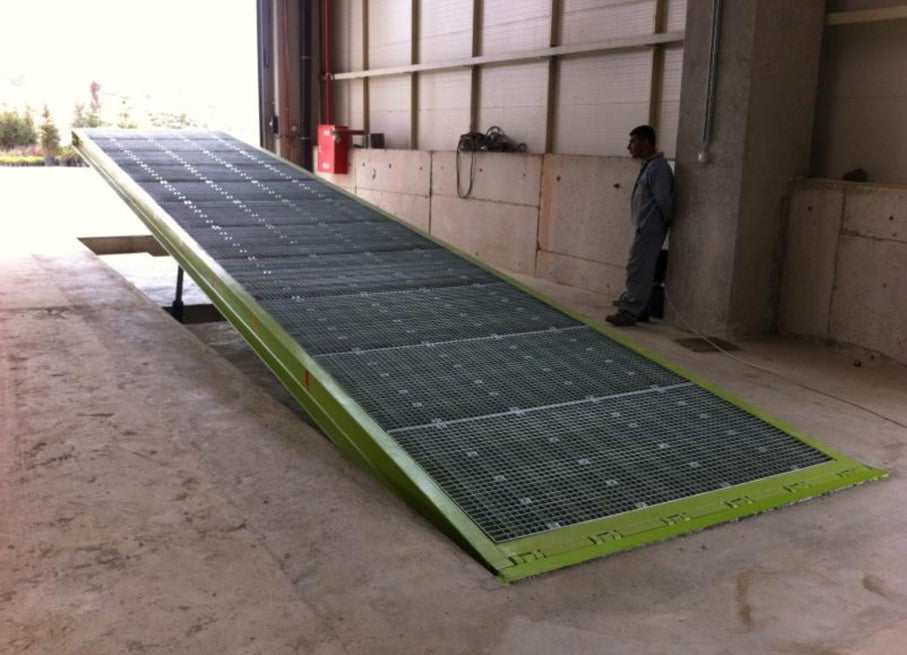

The EASY-ST model is highly appreciated by logistics and industrialists, it allows its loading ramps to be integrated into pits, thus optimizing circulation spaces.
